Design Features:

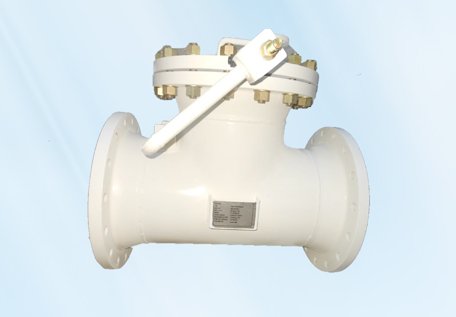

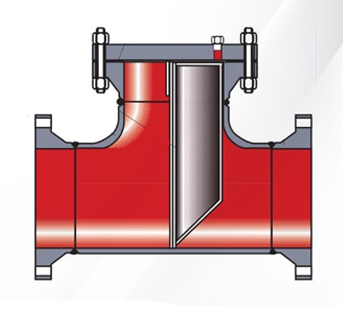

1) Tee Strainer offers several advantages over other strainer designs. The strainer is very compact, important in applications where space is restricted. Unlike most other strainers, Tee Strainer can be used in both vertical and horizontal installations. A real time saving feature Tee Strainer is that the strainer screen can be cleaned without draining the strainer vessel. VTS Tee strainers are available in various material grades.
2) Strainer is fabricated to your specification. Optional materials, end connections and accessories are available.
3) Strainer body meets ASME B16.5
4) 304 SS or 316 SS mesh screens are standard. Perforated plate screens are optional.
5) Drain/Blow-off connection furnished with plug as standard.
6) Generous screen area and properly proportioned straining chamber to minimize initial pressure drop while maximizing time between cleanings.
7) Compact end to end dimension.

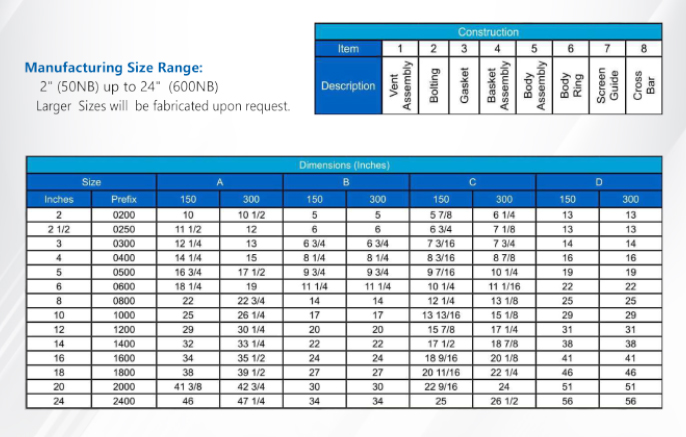

  • Manufacturing Size Range
  • Pressure Rating of Strainer
  • End Connection

1/2" (15NB) up to 24" (600NB)
Larger Sizes will be fabricated upon request.

150# /300#/600#/900#/1500#/2500#

Flanged End to ANSI B16.5
BS10 Table D/E/F/H
PN6/PN10/PN16/PN25/PN40/PN64
Butt Weld End to ANSI B16.25
DIN Standard / JIS Standard / IS Standard
Screwed-Threaded End to ANSI B1.20.l
Socket Weld End to ANSI B16.11
Flanged End to ANSI B16.5
